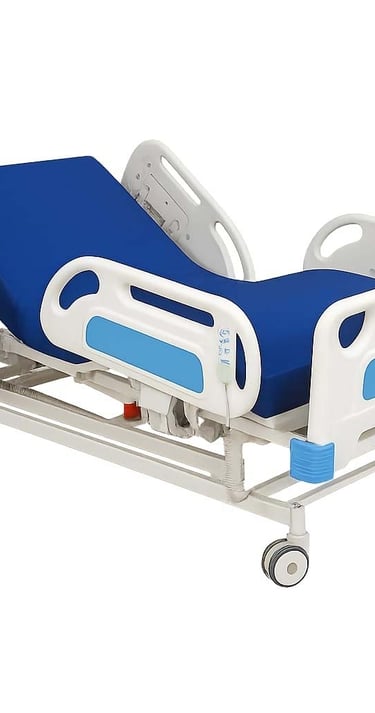

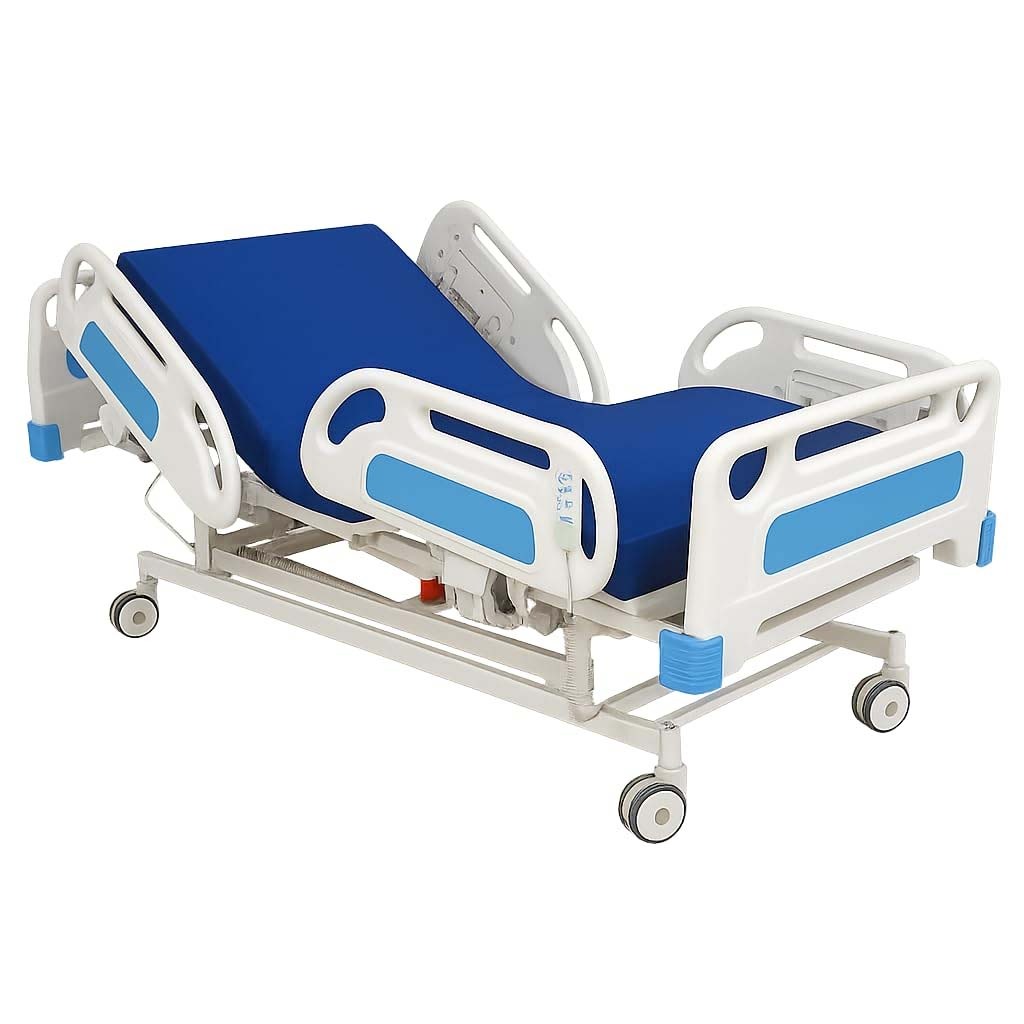

ICU Bed Electric

Fully Motorized ICU Bed

ICU Bed (Electric)

Model : VMF-101

A premium electric intensive care unit bed designed for maximum patient comfort and ease of care. Ideal for critical care units requiring precise patient positioning and advanced mobility features.

Key Features:

Operated via an advanced linear actuator system with a dedicated Nurse Control System (ACP) and handset.
Four independent ABS-moulded/Alumunium side rails and heavy ABS head/foot panels with locking mechanisms for enhanced patient safety.
Four-section perforated CRCA M.S. sheet top on a sturdy M.S. tube framework.
Includes an S.S. telescopic I.V. rod (4 locations) and a convenient holder for a urine bag.
Smooth mobility with 5-inch central /diagonal locking castors.

Technical Specifications:

Dimensions: 2100 mm (L) x 1000 mm (W) x 550–800 mm (H).
Actuators: 4 Motors, 1 Control Box, 1 Handset.
Adjustable Positions: Hi-Low, Backrest elevation, Kneerest elevation, Trendelenburg / Reverse Trendelenburg.

Finish: Pre-treated and Epoxy Powder Coated.

*The specifications provided herein are for reference and standardization purposes only, and may be modified or customized to meet specific customer requirements.

ICU Bed Mechanical

Manual ICU Bed

A durable, manually operated ICU bed offering comprehensive positioning for critical care patients. Suitable for hospitals and clinics requiring reliable, electricity-independent patient care solutions.

Key Features:

Positions are smoothly adjusted using a manual crank system with foldable handles.
Equipped with four individual ABS-moulded side rails and heavy ABS head/foot panels with secure locking.
Sturdy four-section top made of perforated CRCA M.S. sheet, built on an M.S. tube framework.
Features 5-inch ABS castors (two with brakes) for secure placement.

Technical Specifications:

Dimensions: 2090 mm (L) x 1000 mm (W) x 580–750 mm (H).
Adjustable Positions: Hi-Low, Backrest, Kneerest, and Trendelenburg/Reverse Trendelenburg.
Standard Accessories: Urine bag holder included.
Finish: Pre-treated and Epoxy Powder Coated.

VMF-110

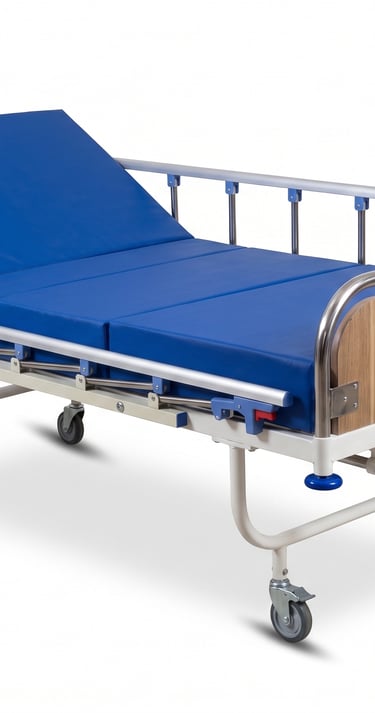

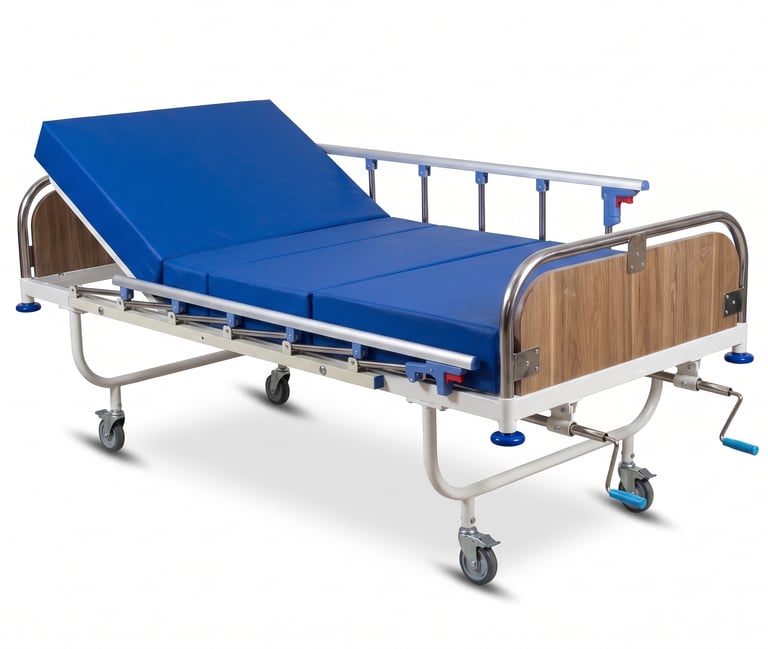

Hospital Fowler Bed (Mechanical)

VMF-117

A highly durable and fully functional mechanical Fowler bed designed to provide superior patient comfort and ease of care in general hospital wards and recovery rooms. It features a reliable manual crank mechanism to easily adjust patient positioning without the need for electricity.

Key Features:

Smooth manual crank system with foldable handles allows easy adjustment of the backrest and kneerest elevations.
Includes two individual detachable and collapsible side rails to ensure maximum patient safety.
Equipped with premium SS Laminated wooden panel or ABS-moulded head and foot panels that are lightweight, durable, and easy to sanitize.
Built on a sturdy M.S. tube framework with a 4-section top constructed from an oval perforated CRCA M.S. sheet for optimal breathability.
Effortless mobility is provided by 4-inch castors, with two featuring secure brakes for stable placement.
Features four dedicated locations for an I.V. rod, adding convenience to routine patient care.

Technical Specifications:

Dimensions: 2000 mm (L) x 900 mm (W) x 600 mm (H).
Adjustment Mechanism: Mechanical smooth crank system.
Positions: Backrest elevation and Kneerest elevation.
Finish: Pre-treated and Epoxy Powder Coated for excellent rust resistance and longevity.
Optional Add-ons: 4-section mattress, S.S. telescopic I.V. rod, and upgrade to four pieces of individual ABS-moulded side rails.

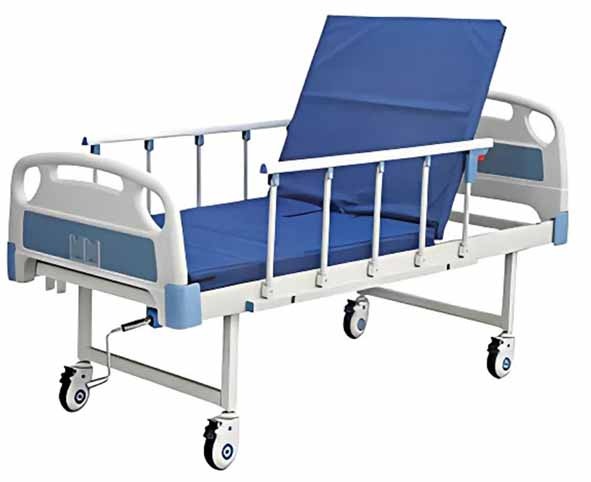

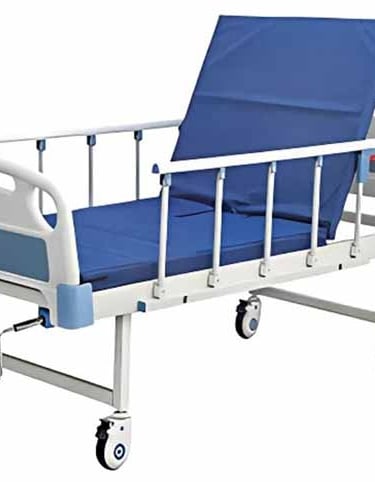

Hospital Patient Bed Semi-Fowler

VMF-124

A reliable semi-fowler bed suitable for general hospital wards and clinics. Designed to offer comfortable backrest elevation for recovering patients.

Key Features:

Backrest elevation controlled by a smooth manual crank system with a foldable handle.
Two-section top crafted from perforated CRCA M.S. sheet for durability and breathability.
Sturdy knockdown construction with legs fitted with high-quality rubber stumps for stability.
Includes four dedicated locations for an I.V. rod.

Technical Specifications:

Dimensions: 1950 mm (L) x 910 mm (W) x 600 mm (H).
Positions: Adjustable Backrest.
Finish: Pre-treated and Epoxy Powder Coated.

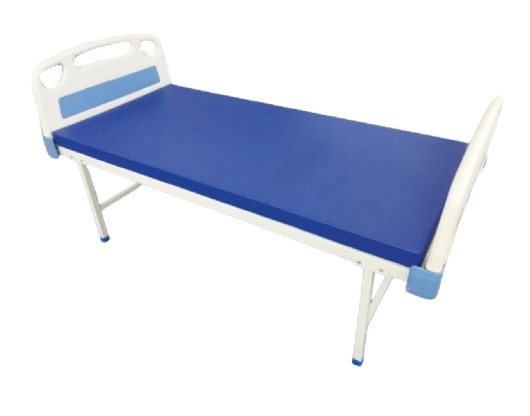

Hospital Patient Bed General/Plain

VMF-126

A sturdy, reliable, and straightforward general-purpose hospital bed designed for basic patient care in standard wards, clinics, and primary healthcare centers. This plain bed provides essential support, durability, and a clean aesthetic for everyday medical environments.

Key Features:

· Constructed with a robust framework made of rectangular and square mild steel (M.S.) tubes to ensure long-lasting stability and structural integrity.

· The single-section bed top is crafted from high-quality perforated CRCA M.S. sheet to allow adequate mattress ventilation and ensure patient comfort.

· Sturdy legs are securely fitted with durable PVC stumps to prevent floor scratching and provide an anti-slip, stable placement.

Technical Specifications:

· Dimensions: 1800 mm (L) x 600 mm (W) x 500 mm (H).

· Framework Material: Rectangular/Square M.S. tubes.

· Top Surface: Perforated CRCA M.S. sheet.

· Base Profile: Fixed legs with PVC stumps.

· Finish: Pre-treated and Epoxy Powder Coated for superior rust and scratch resistance.
